How to Create a Swap Partition using fdisk command

A swap partition in Linux acts like backup memory when RAM is full. It helps the system run smoothly, stay responsive, and handle heavy tasks better.

What is a Swap Partition?

A swap partition acts like extra memory on your hard drive when your RAM is full. When your RAM gets crowded, less-used data is moved to the swap partition, allowing the system to continue running smoothly. While it may seem like a quick fix for memory issues, it’s not as fast or efficient as adding more RAM.

Benefits of Swap Partition

A swap partition offers several benefits for Linux and other Unix-like systems:

1. Extended Memory: It acts as extra memory when RAM is full, letting you run more programs without slowing down.
2. Stability: It prevents system crashes by providing a backup when RAM is overloaded.
3. Better Multitasking: Swap helps your system handle more apps without freezing or crashing.
4. Hibernation: It stores data during hibernation, allowing you to resume work later.
5. Prevents OOM: Helps avoid “Out of Memory” errors by swapping less important data.
6. Crash Recovery: It can capture a memory dump after a crash, helping with troubleshooting.
7. Wide Compatibility: Swap is supported across many operating systems, making it a dependable tool for memory management.

Disadvantages of Swap Partition

Swap partitions can be helpful, but they come with some downsides:

1. Takes Up Disk Space: It occupies space, which can be an issue on systems with limited storage.
2. Slower Performance: Writing and reading to disk is much slower than RAM, and too much swapping can slow down your system.
3. Wear on SSDs: Frequent swapping can wear out SSDs faster due to their limited write cycles.
4. Hides RAM Issues: Relying on swap can mask the need for more RAM or better software optimization, leading to slower performance.
5. Harder to Manage: Managing a swap partition is more complex than a swap file, as it needs manual setup and adjustments.
6. Fragmentation: Over time, swap partitions can get fragmented, slowing performance.
7. Limited Flexibility: Changing swap size often requires reconfiguring your storage setup, which can be time-consuming.
8. Security Risk: If not encrypted, sensitive data in swap space could be accessed by unauthorized users.

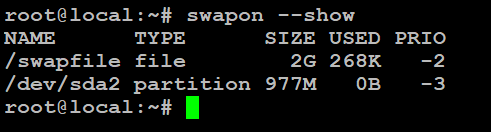

Check your Swap Partition

# swapon --show

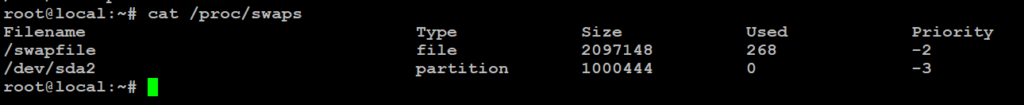

Check /proc/swaps File

The /proc/swaps file shows details about the system’s swap space and how much of it is being used.

# cat /proc/swaps

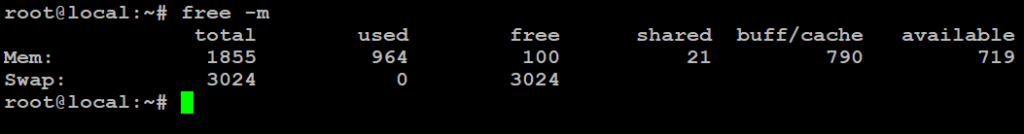

Check free command

The free command shows how much memory is being used on your system, including both physical and virtual memory.

# free -m

Create a Swap Partition using fdisk command

You can either create a new partition or use free space from an existing one for a swap file. To create a new partition, you can use tools like fdisk, gdisk, or parted. In this guide, we’ll use fdisk.

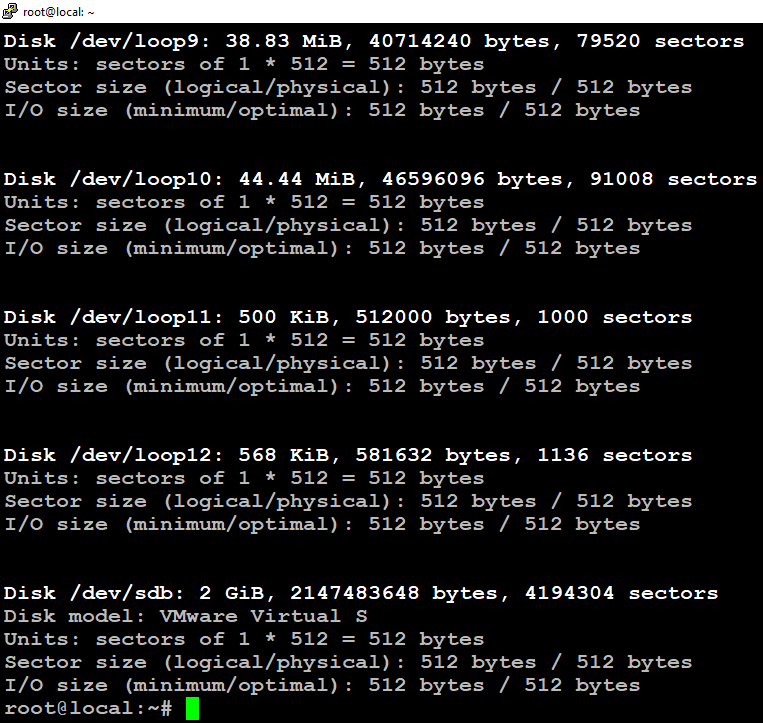

Check available disk space for swap partition

# fdisk -l

 Take the disk you want to partition:

# fdisk /dev/sdb

Print use disk space

# Type p

Type n and press Enter to create a new partition

# Command (m for help): n
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1): 1
First sector (2048-4194303, default 2048):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (2048-4194303, default 4194303):

Created a new partition 1 of type 'Linux' and of size 2 GiB.

Command (m for help): p
Disk /dev/sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x77e88451

Device     Boot Start     End Sectors Size Id Type
/dev/sdb1        2048 4194303 4192256   2G 83 Linux

By default, the partition type is 83, while 82 is a partition type identifier for swap space.

Type t and press Enter to change the partition type. Change the value to 82 and press Enter.

# Command (m for help): t
# Hex code or alias (type L to list all): 82
Changed type of partition 'Linux' to 'Linux swap / Solaris'.

Command (m for help): p
Disk /dev/sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x77e88451

Device     Boot Start     End Sectors Size Id Type
/dev/sdb1        2048 4194303 4192256   2G 82 Linux swap / Solaris

Command (m for help):

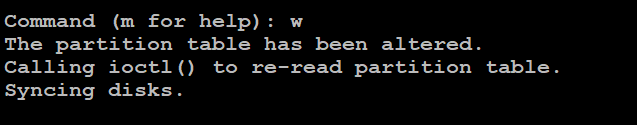

To proceed with the changes, type w, and press Enter.

Update the partition table

# partprobe /dev/sdb

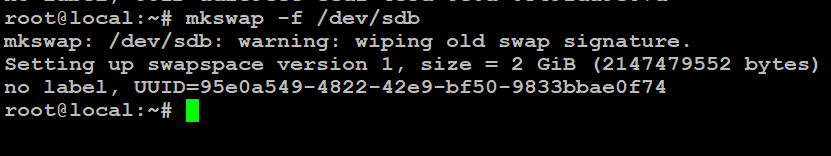

Use the mkswap command to set up the partition as swap space. It adds a swap signature, so the system can use it for virtual memory, while the rest of the space stores memory pages.

# mkswap -f /dev/sdb

After formatting, the swap partition is created and ready to use.

How to Enable a Swap Partition

Activate the Swap Partition

# swapon /dev/sdb
# swapon --show

The swap partition activates on boot and make it permanent.

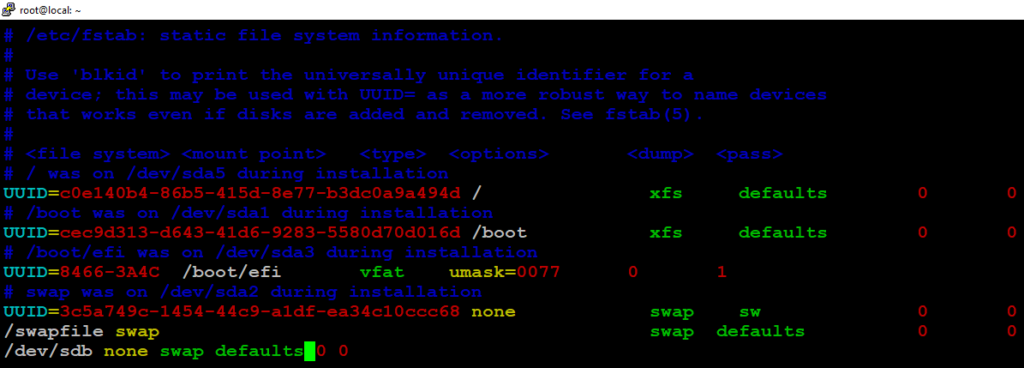

# vim /etc/fstab
/dev/sdb none swap defaults 0 0

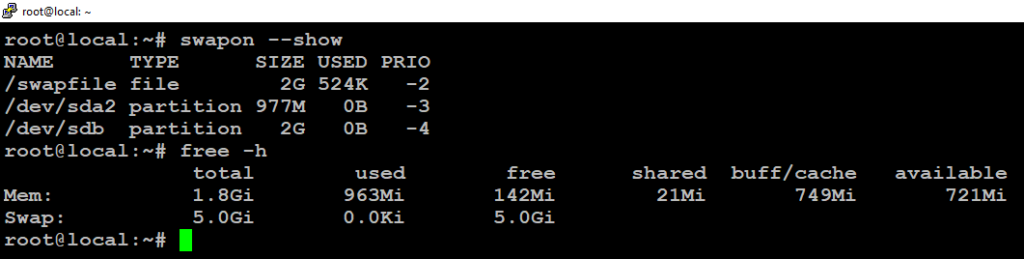

Check Existing Swap

# swapon --show
# free -h

Disable Swap

# swapoff -a

Enable Swap

# swapon -a
